MIDACO for Java



Download  MIDACO 6.0 (limited)  together with some example problem.

Java Gateway



Midaco.java



Library Windows Linux Mac
32bit midacoj.dll  midacoj.dll midacoj.dll
64bit midacoj.dll  midacoj.dll midacoj.dll



Problem Type Description Example
NLP Continuous variables Example_NLP.java
NLPc NLP with constraints Example_NLPc.java
IP Integer variables

Example_IP.java

IPc IP with constraints Example_IPc.java
MINLP Mixed variables Example_MINLP.java
MINLPc MINLP with constraints Example_MINLPc.java
MO Multiple Objectives Example_MO.java



More example problems available at:   Benchmarks



Java examples using  Parallelization  are available here





 How to run MIDACO with Eclipse IDE

Step 1 Create empty Java project with name "Example"

Step 2 Create Java Class with Package and Name "Example"

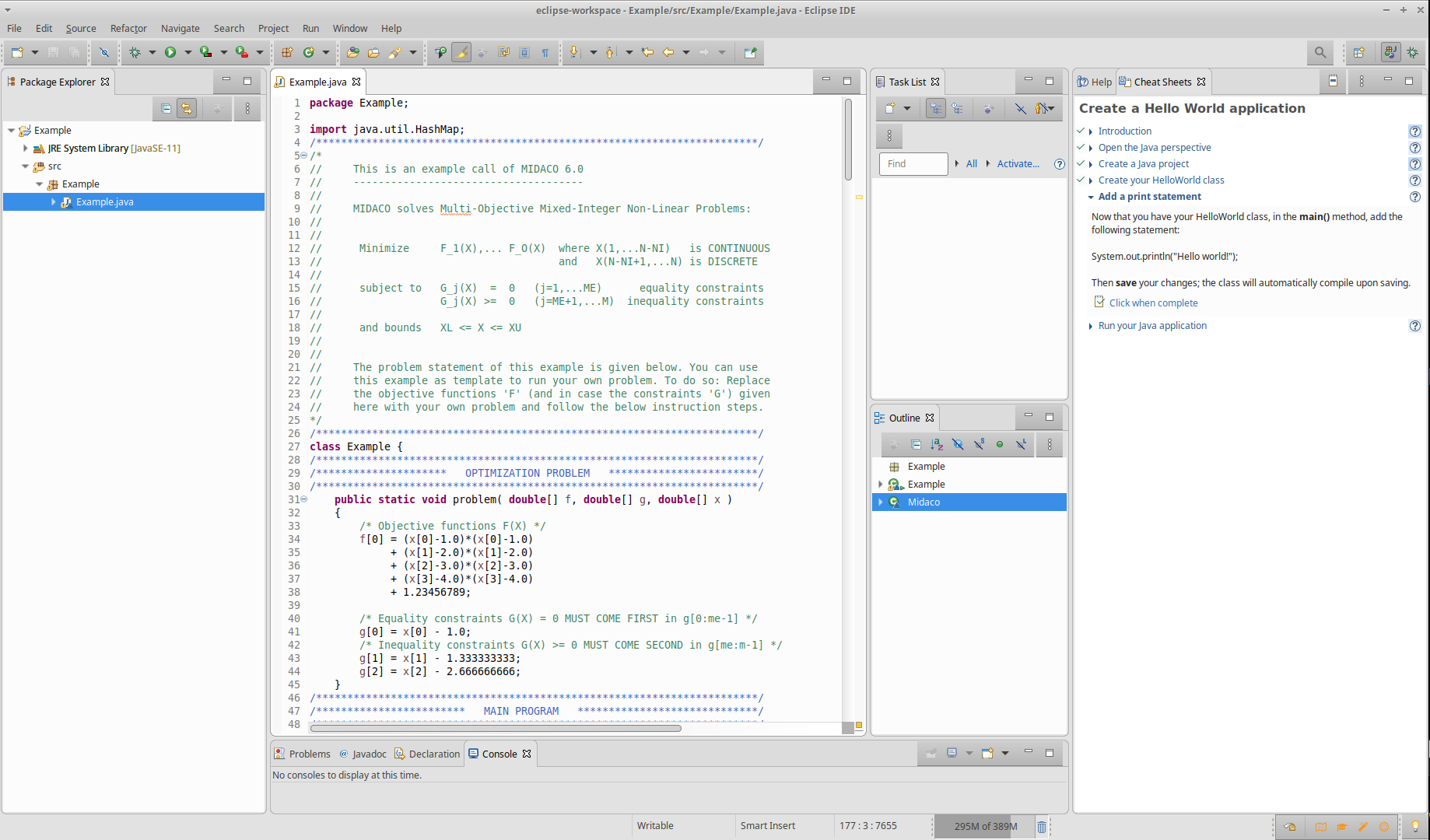

Step 3

 Remove the empty  public class Example { }  in Example.java



 Copy & paste the complete Example_MINLPc.java and Midaco.java

 together into the Example.java file in Eclipse.



 Remove the  import java.util.HashMap;  at the top of Midaco.java



Step 4



Place the midacoj.dll  library file in the Eclipse project folder "Example".

Alternatively: Specify the library path at the end of Midaco.java file.

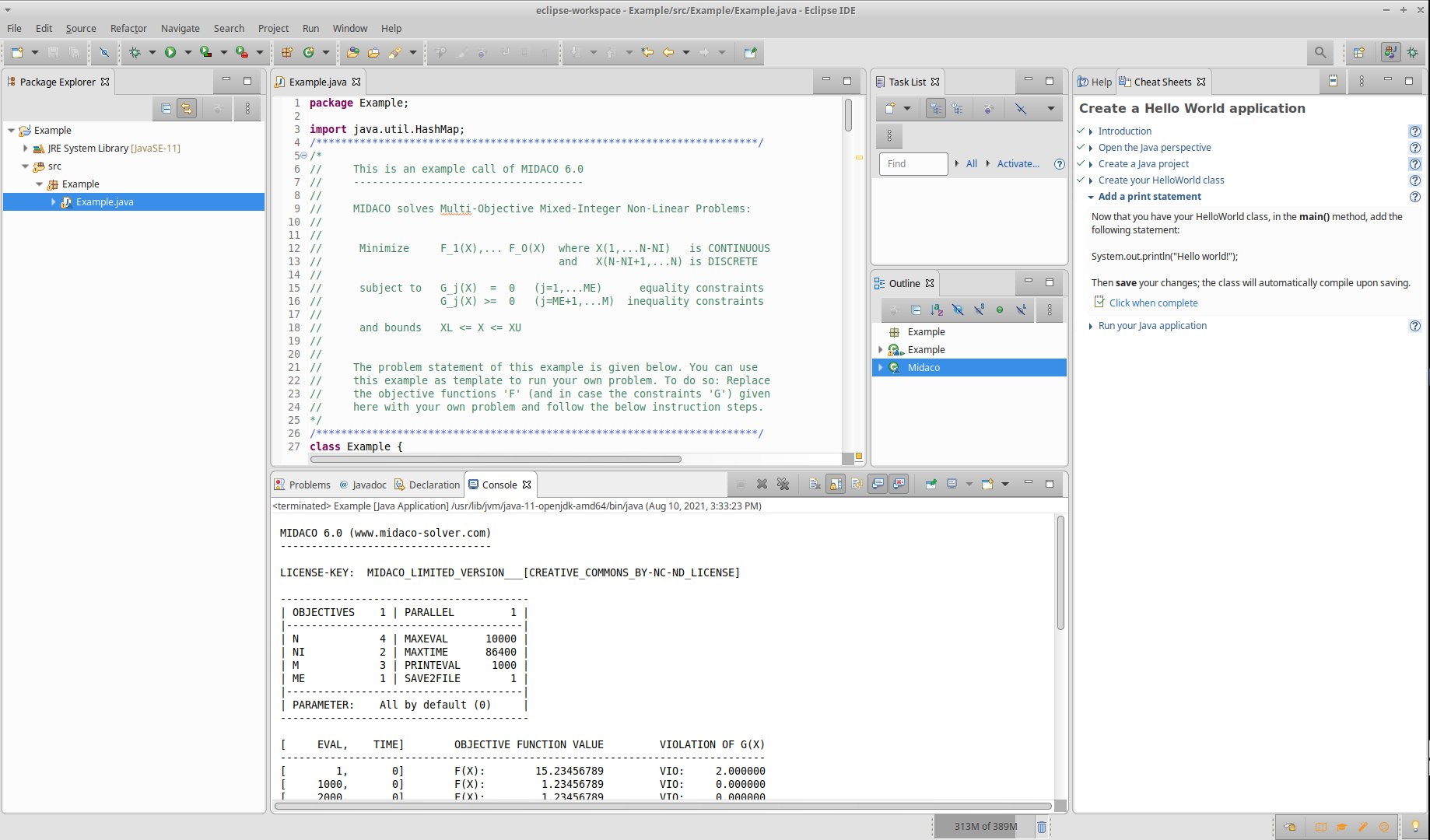

Now press the "Run" button in Eclipse and the example should execute.




   Complete Eclipse project folder for Windows (64-bit)
 Example.zip
   Complete Eclipse project folder for Linux (64-bit)  Example.tar.gz



Note





 Currently the library file works only with Eclipse projects named "Example".

 On request, library files for arbitrary named Eclipse projects can be generated.





 How to run MIDACO in Console  [ Windows ]

Step 1 Download Midaco.java, midacoj.dll and some example
Step 2 Open CMD console, change to folder with above files

Step 3

(optional)

Add Java binary directory to PATH environment variable:

set PATH=%PATH%;C:\Program Files\Java\jdk-14.0.1\bin

Step 4

Compile example  > javac Example_MINLPc.java

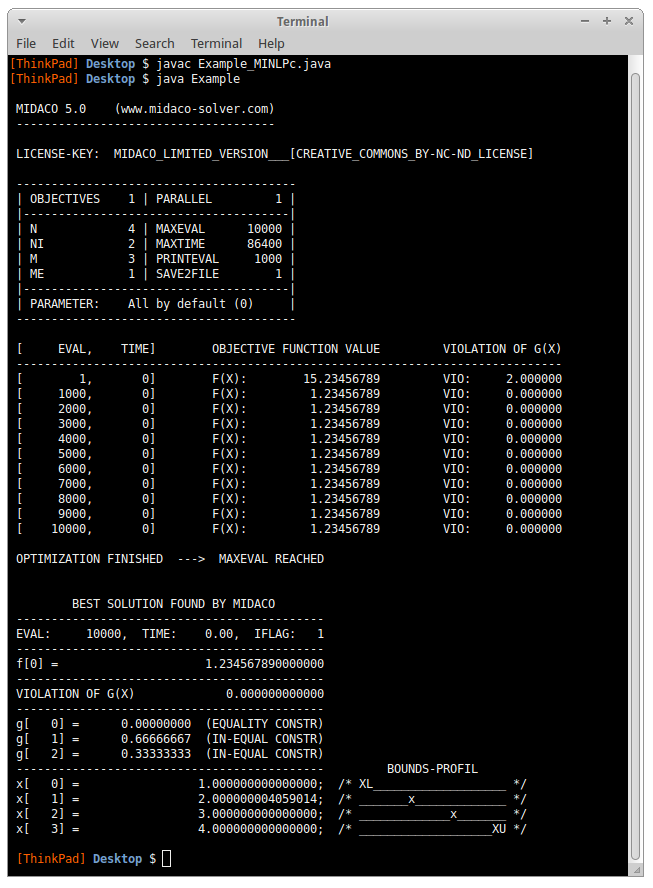

Step 5 Execute example   > java Example
Note

The problem evaluation call happens within Midaco.java at Line 129:



>   Example.problem(f,g,x);



This call to the problem function can freely be changed by the user.



 How to run MIDACO in Console  [ Mac & Linux ]

Step 1 Download Midaco.java, midacoj.dll and some example
Step 2
Store all files in the same folder (e.g. Desktop) on your PC
Step 3 Open console and navigate to folder with above files
Step 4
Compile example   > javac Example_MINLPc.java
Step 5
Execute example   > java Example

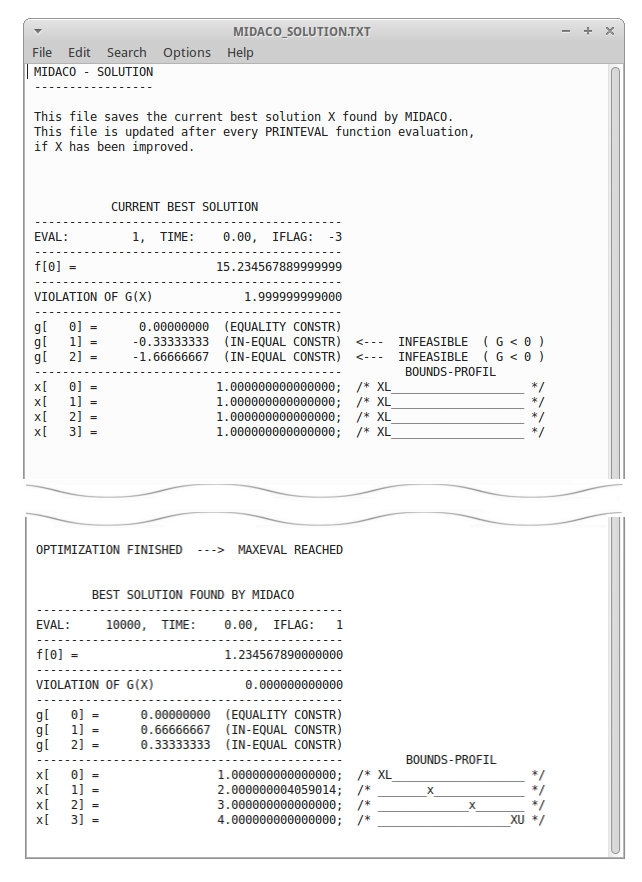

Screenshot Solution File



Any problems running MIDACO? Please click here or contact us.
